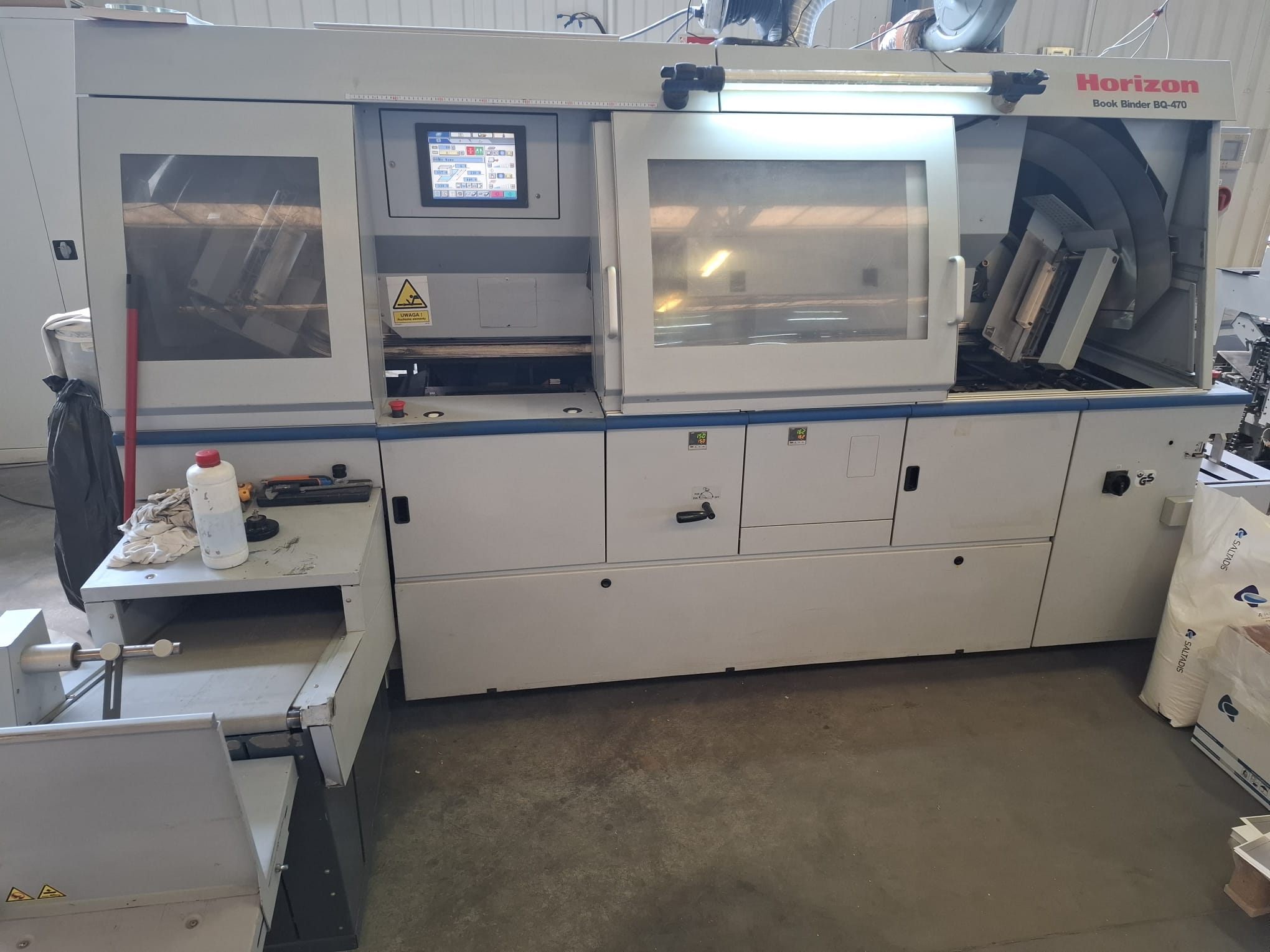

Horizon BQ 470

Fully Automated 4 Clamps Perfect Binder With PUR Gluing Unit & EVA Gluing Unit, Book Size: Max. 320x320mm, Min. 145x105mm, Cover Size: Max. 320x660mm, Min. 135x225mm, Book Thickness: 0,3 to 65mm, Cover Weight Range: 81,4 - 302,4 g/sqm, Book Weight Range: 60 - 135 g/sqm, Cover Pile Height: Max. 150mm, Milling Depth Adjustment From 0 To 4mm, Speed: 1350 Cycles/Hour, 4 Creasing Positive/Negative, 2 Creasing, Palmar For Automatic Books Adjustment, Color Touchscreen Panel, Book Thickness Input Caliper SI-470A, Cover Feeder Suction, Supersonic Double Feed Detect Sensor, Glue Tank Unit, Lateral Side Glue, Horizon SI-470A Delivery Conveyor, Smoke Extractor , Power Required: 400V Rotary Current 16A, 6,5 KW For Adhesive Binder and 400V Rotary Current 16A, 6,0 KW For Melting Unit, Standard Accessories
